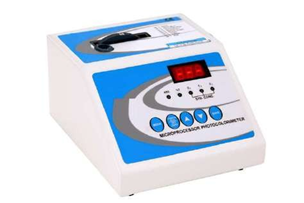

Automatic Microcontroller Based Photo Colorimeter HPCM-458-iN
Technical Features :
STANDARD ACCESSORIES: Glass test tubes 5 Nos.| Instruments cover 1 Nos.| Operating Manual 1 Nos.| Spare Lamp 1 Nos. (Fitted inside)
Technical Specifications:
Product No: 52
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DISPLAY | 3 Digit Red LED Display. |
| DISPLAY MODE | % T, O.D. and 3 Concentration Modes C1,C2,C3 |
| ZERO ADJUSTMENT | Automatic (without Knob Rotation) |
| ACCURACY | ± 0.02 O.D. |
| Filters Wavelength | 8 Filter 400nm,420nm,480nm,500nm,520nm,540nm,620nm,680nm, |
| STABILITY | ± 0.02 0.d. Per Hour. |
| LIGHT SOURCE | 6.8 Volt , 0.3 Amp Tungsten Lamp/led |
| AMPLIFIER | Micro Controller Based. |
| MEMORY | In built memory to retain last "K" factor for concentration even after power loss. |
| SAMPLE VOLUME | 1 MI. Minimum. |
| POWER SUPPLY | 230 V ± 10 %, 50 Hz. |
